As with most things in life, they are easier to understand if we know what the heck they are, so let’s get dem toes wet and start by defining what an SVG is.

An SVG (or Scalable Vector Graphic) is a scalable, vector-based image format that can be used on web pages. It is designed to be an open standard for graphics on the Web and is compatible with most browsers. To create these fancy SVG images you would typically use some image editing software like Adobe Illustrator ($$$) or Inkscape (free).

So now that we know what these foreign objects are we can talk about why we are here. WordPress and Divi do not support SVG files by default, so we need to use some tools to enable SVG uploads to our Divi install which we will look at in this Divi tutorial.

We will even take things a step further by also looking at how one can use SVG code, yes, you read that right, to add SVG images to our Divi install and manipulate them with some CSS code.

I know, mind blown 🤯

Let’s do this!

Video Tutorial

Why use SVG images in Divi?

There are two main reasons why using SVG images in Divi is better than PNG or JPG files.

Creating an SVG logo in Illustrator

Illustrator is an awesome tool to use for creating vector images like SVGs, but I get it, it can be expensive for some so we recommend InkScape as a free alternative to those of you just starting out or playing around. You should be able to follow along without much trouble in either software.

Instead of teaching you how to create an amazingly designed logo, we are showing you the tools you’d use to create a logo that best reflects your brand. That is code for I’m a terrible designer.

Be that as its way, we will be recreating this logo in its pixel-perfect glory:

Fire up Adobe Illustrator

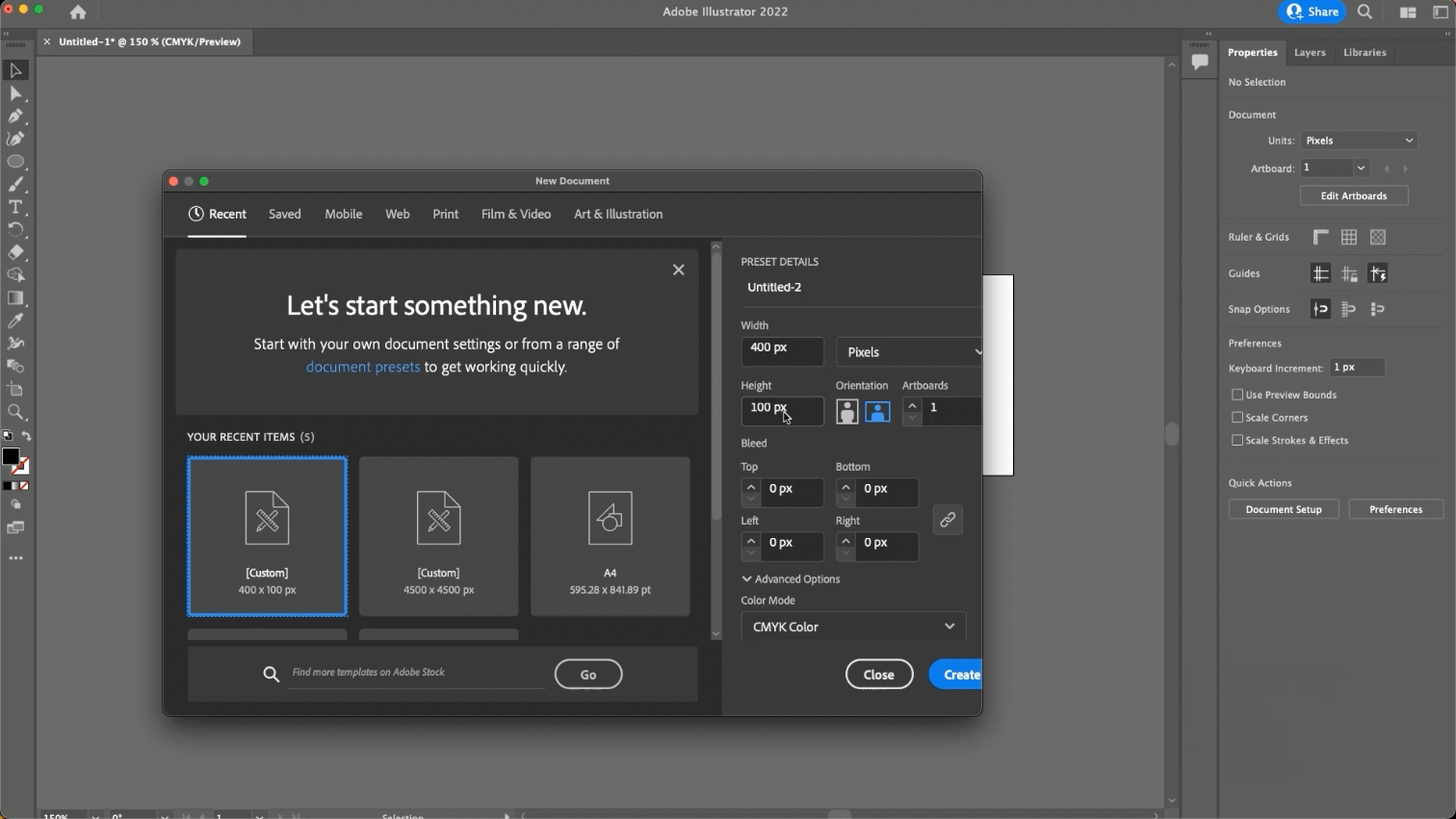

New Document

Width: 400px

Height: 100px

Create

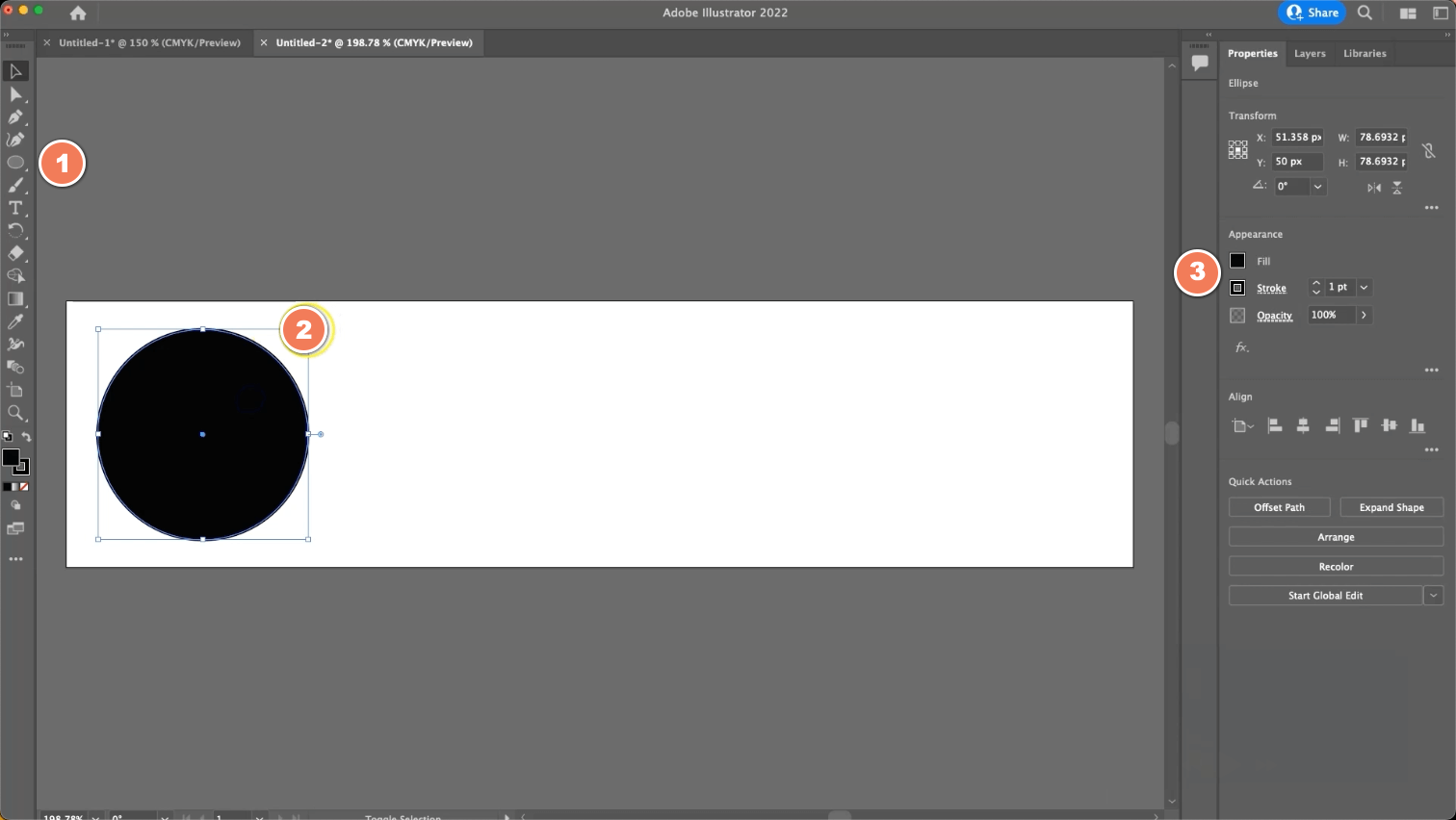

Create circle shape

Select the Circle Shape tool (1) in the left bar

Hold the Shift-key and drag a uniform circle shape (2) on the art board

Make sure the Fill and Stroke colors (3) are the colors you want, we are using black

Add logo text

Select the Text tool (1) in the left bar

Type your logo text (2) then hold the Shift-key and scale the text uniformly so that the first two letters go outside the bounds of the circle

Select the first two letters (3) you typed and change the color to white

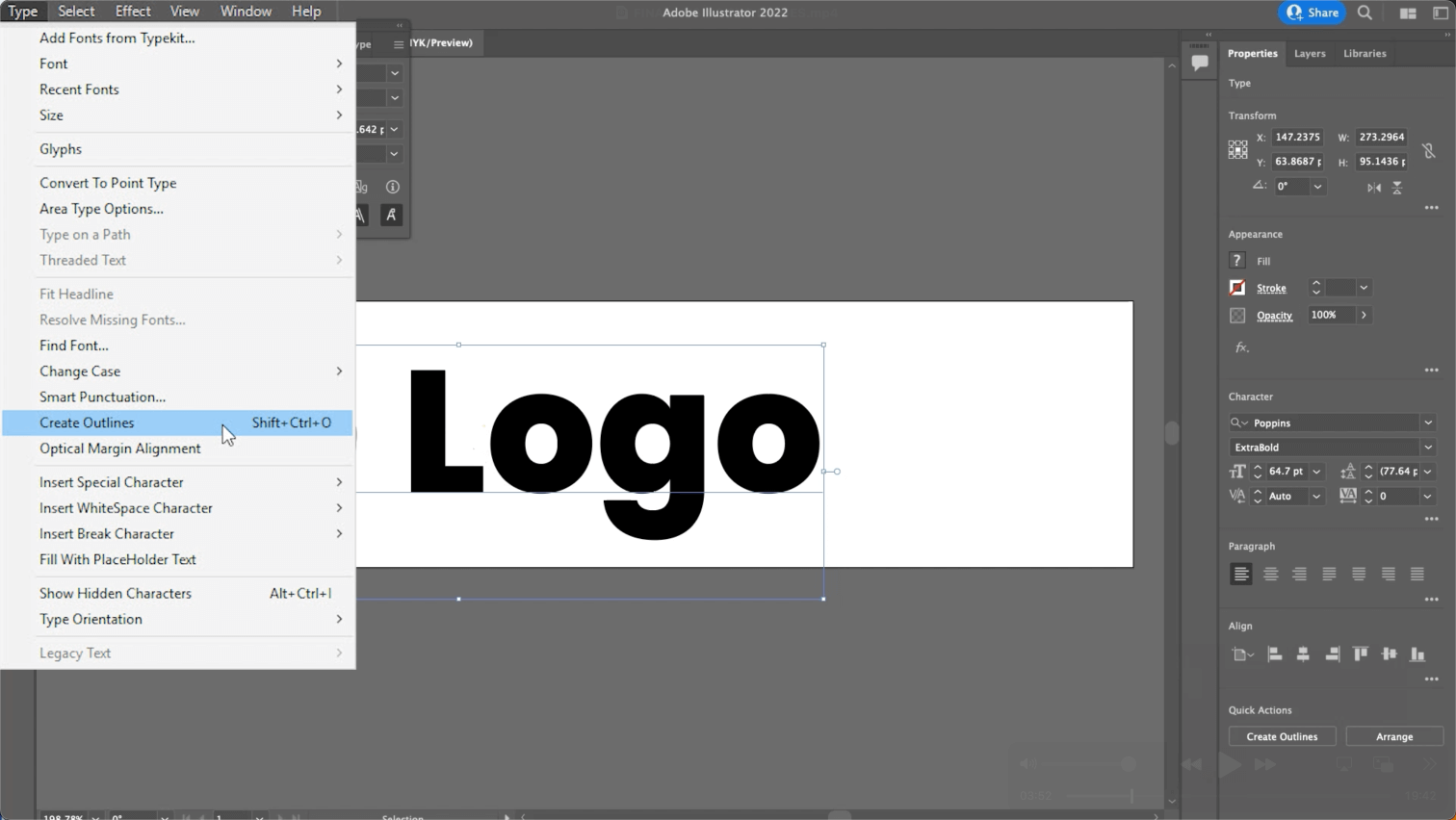

Convert the logo text into paths

Select the text

Go to Type > Create Outlines

Now right-click the text and click on Ungroup

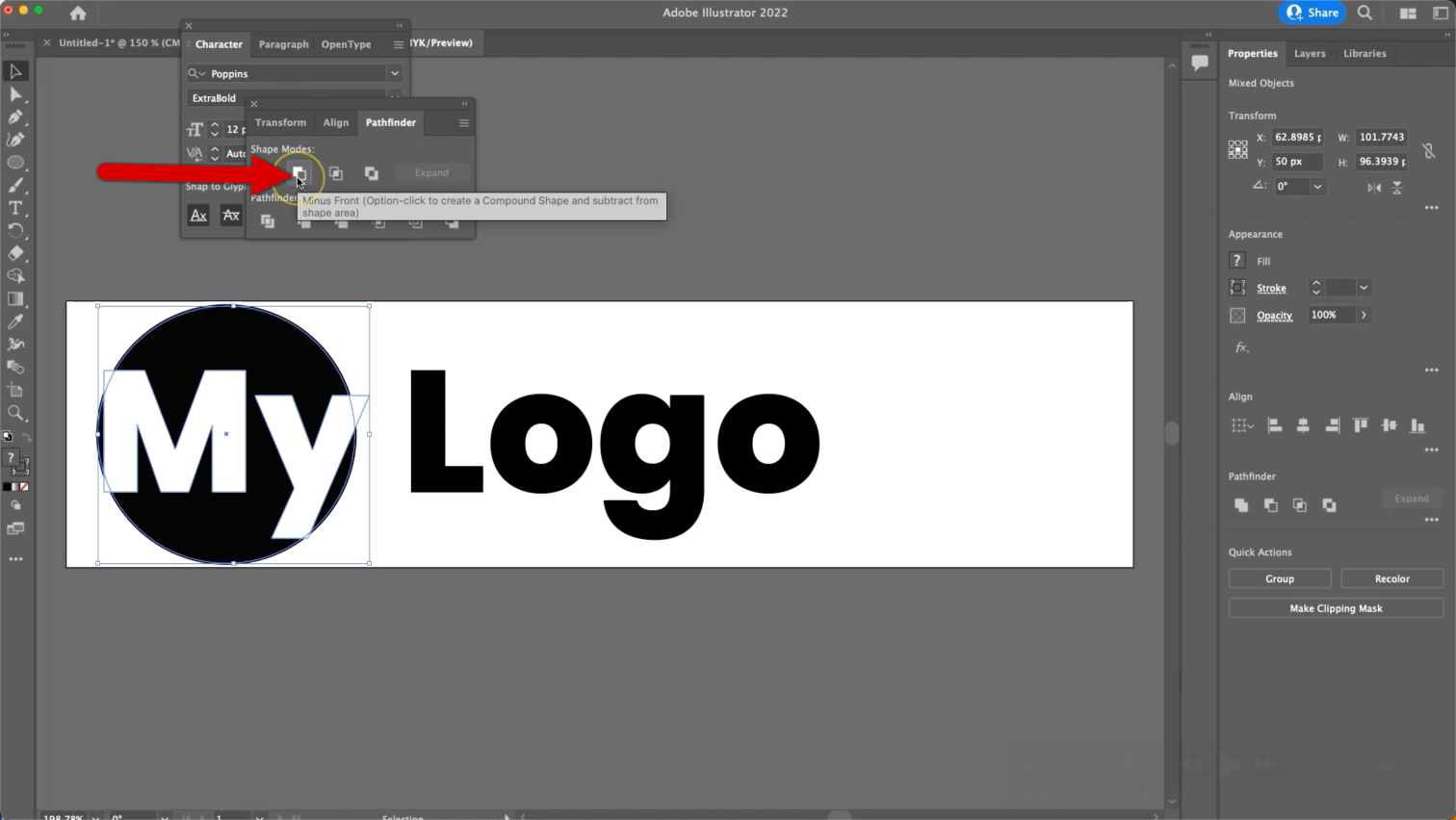

Combine the text and circle

Select the circle and the two-letter inside of it

Make sure the Pathfinder window is open Window > Pathfinder > Minus Front

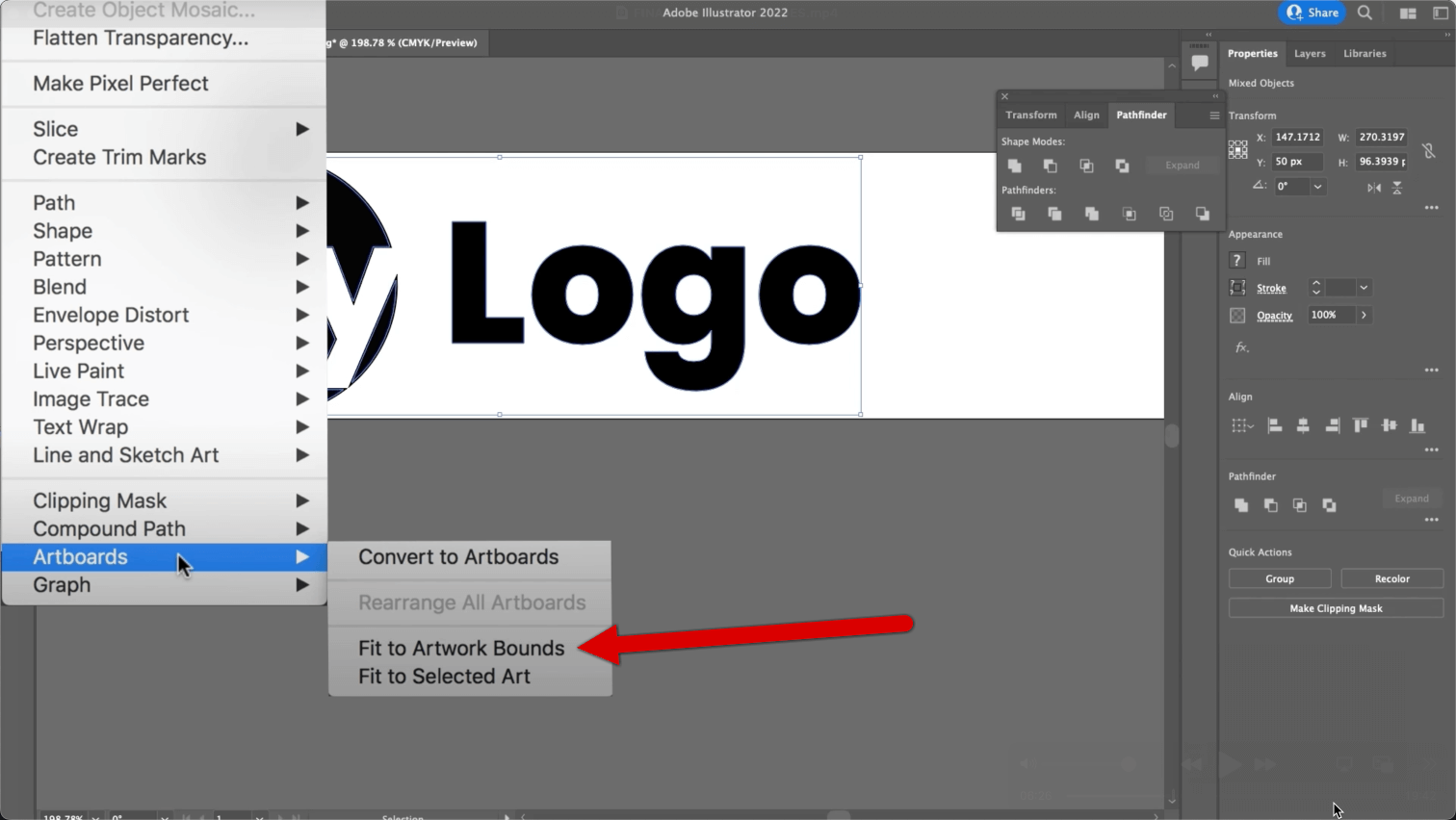

Make the artboard the same size as the logo

Select all the art on the artboard

Go to Object > Artboards > Fit to Artwork Bounds

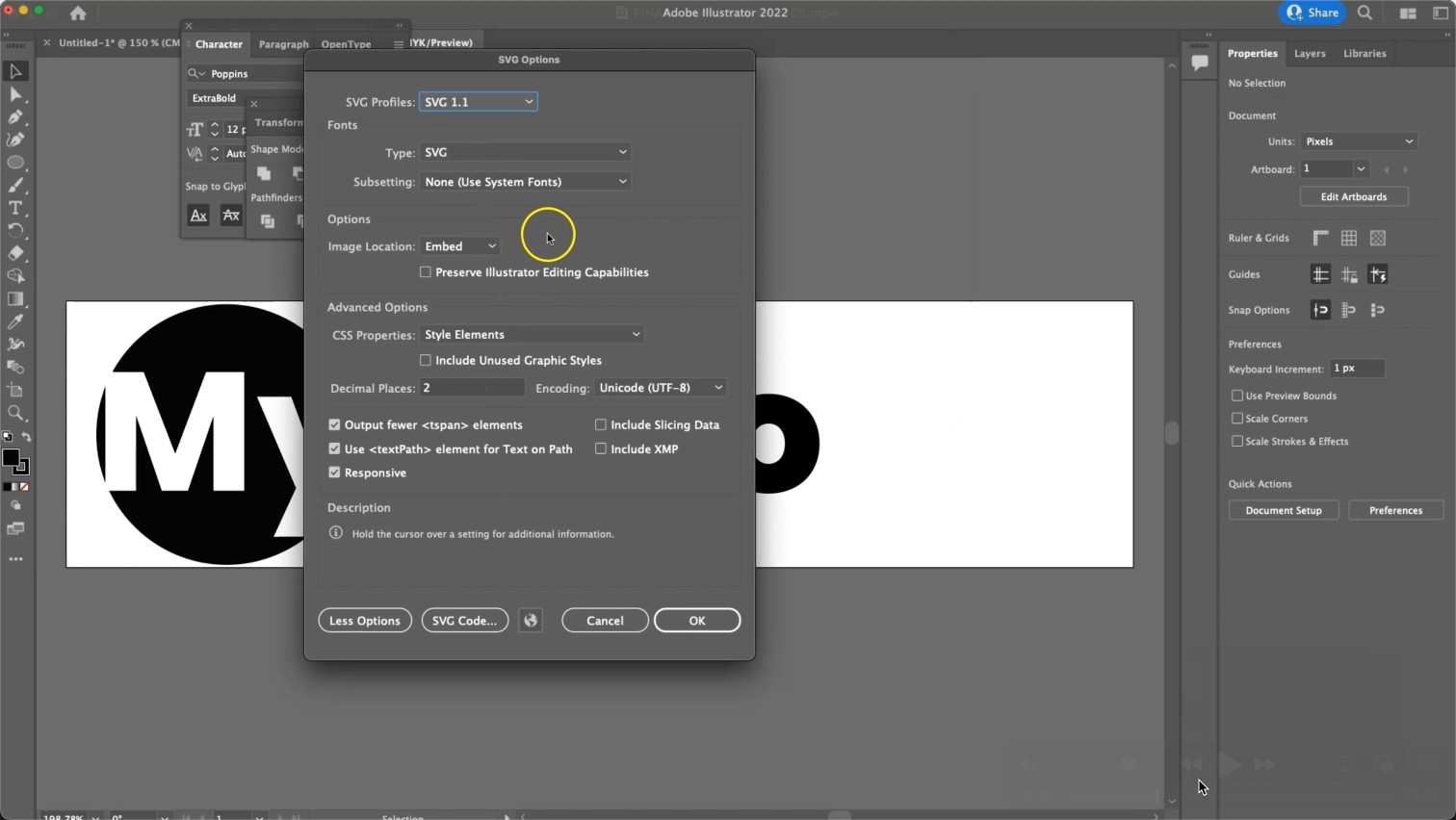

Saving your SVG file

Make sure to Save As with the settings below

Yewwwww, here we go. We have our SVG saved and we are ready to party folks!

Here in the next step, we will get to show you two different ways to implement SVG images in Divi. One will require us to install a plugin, and the other will work with the actual SVG code.

Now go you, brush that shoulder off.

Method 1: Adding SVG Support to Divi

So as I’ve mentioned, Divi and WordPress do not come out of the box with SVG support, so we need to either add the MIME type or use a plugin to allow SVG file support. Aptly named, today we will use a plugin called SVG Support to add this functionality to our Divi install. If you’d like to know how to manually add SVG upload support, check out our tutorial on How to FIX “Sorry this file type is not permitted for security reasons.” where we show you exactly how to enable SVG in Divi.

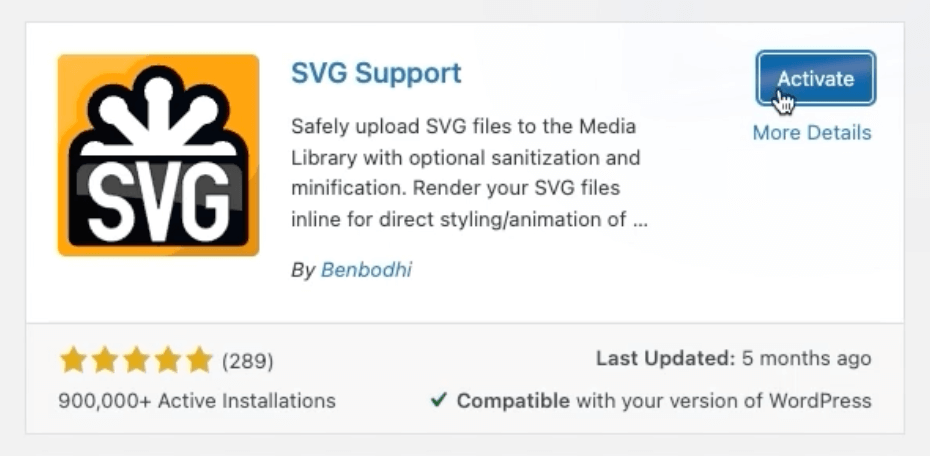

Installing SVG Support

Let’s start by logging into the backend of our Divi site and installing the plugin.

Go to Plugins > Add New > And search for SVG Support

Install and then Activate the plugin.

Awesomeness! With SVG support added to our Divi site, we can now use our SVG image as our Divi site logo.

Assign your SVG logo to Divi

Go to Divi > Theme Options

Upload and assign your logo.

This is all good and well, but what if you wanted to use SVG images in other contexts or maybe even modify them on the fly like the ninja you are? With SVG images essentially just being XML code that tells the browser where to wield its paint brush, you can actually modify that code with CSS.

Let’s take a look at how we would obtain and modify that code to take things a step further.

Method 2: Adding SVG code to Divi

For you purists out there, adding the SVG for your images is by far the most versatile use of SVG images in Divi. Not only does this avoid you having to use a plugin to use your SVG image sin Divi, but it also offers another level of customizability to achieve some really awesome effects.

First things first, let’s grab the code for our SVG images in Illustrator and then add it to our Divi site.

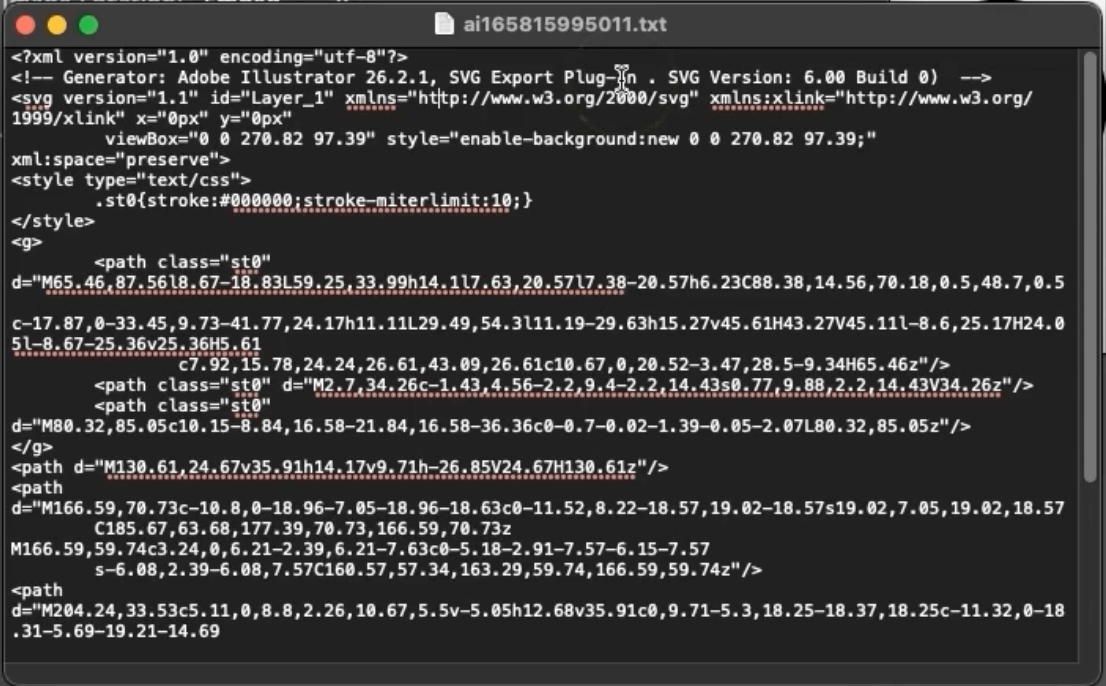

Export your SVG code from Illustrator

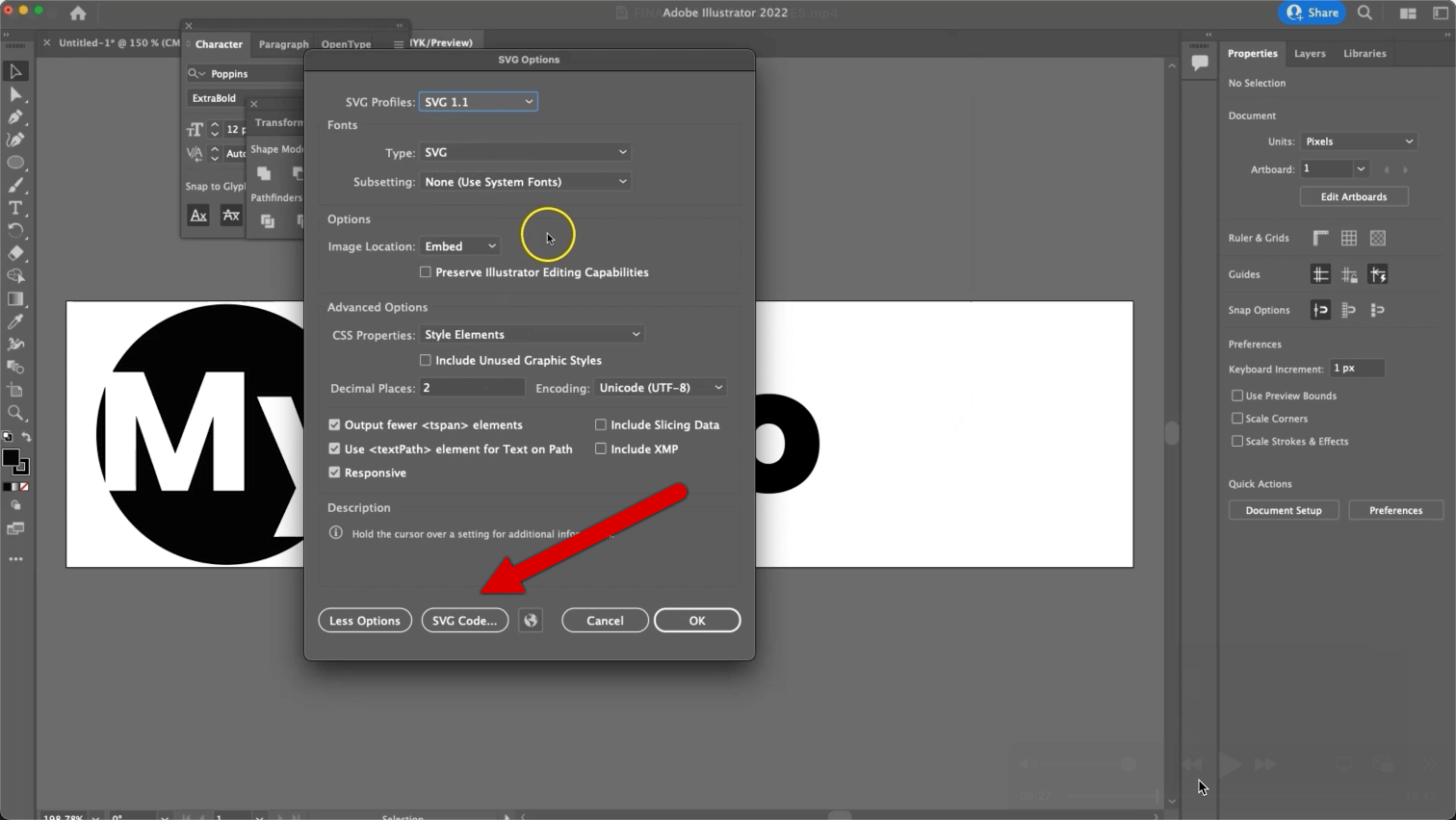

We will follow the same steps as we did above to save our SVG file, but before we hit that final save button, we will click on SVG code...

This will pop open a window filled with code, just copy the whole lot to your clipboard and head back to your Divi install.

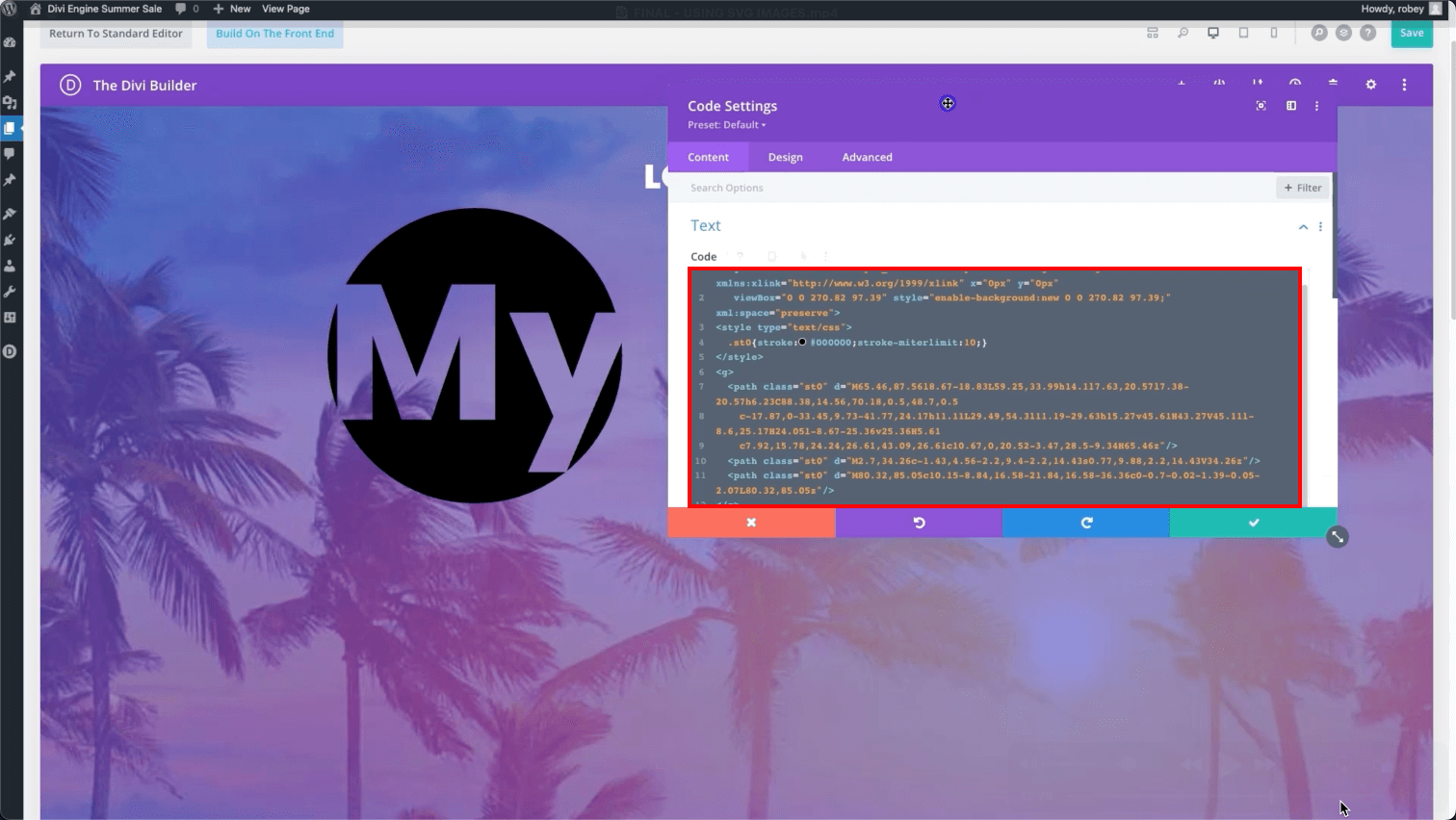

Adding your SVG code to Divi

Edit or create a new page or post in Divi then add a code module

With that open, paste the code that you copied to your clipboard from Illustrator into the code area

And there you have it! You might not know why it works or exactly what you did, but you just added an SVG image to your Divi site by pasting a bunch of words and numbers into a code module you magician you.

As fancy as this is, we will take things a bit further in the next section where we will show you how to customize this SVG code with CSS to add some pretty cool effects.

Changing SVG elements with CSS

As if using SVG images in Divi didn’t already have a ton of benefits, we get rewarded even further with the ability to tweak our SVG image by applying some CSS code.

Now think about that for a second you genius.

Yeah, if you can apply CSS to your SVG images, you can start doing some pretty incredible things. Think about changing the style, colors, size, and more. Then think some more and realize you can add hover effects and animations.

This is powerful stuff right here and we will dive into all of it soon, but for today, let’s look and how we set ourselves up to do all this.

Assign CSS classes to your SVG code

Inside of your SVG code you will a bunch of path declarations. These are the actual shapes that make up your SVG image, how cool is that? Now if you want to know what path corresponds with what element of your SVG image, just delete one character of the path declaration and you will see if disappear off the screen.

This is a rather primal way of doing things, but this way we know what goes with what and we can actually add CSS classes to each path so that we can manipulate it with CSS code.

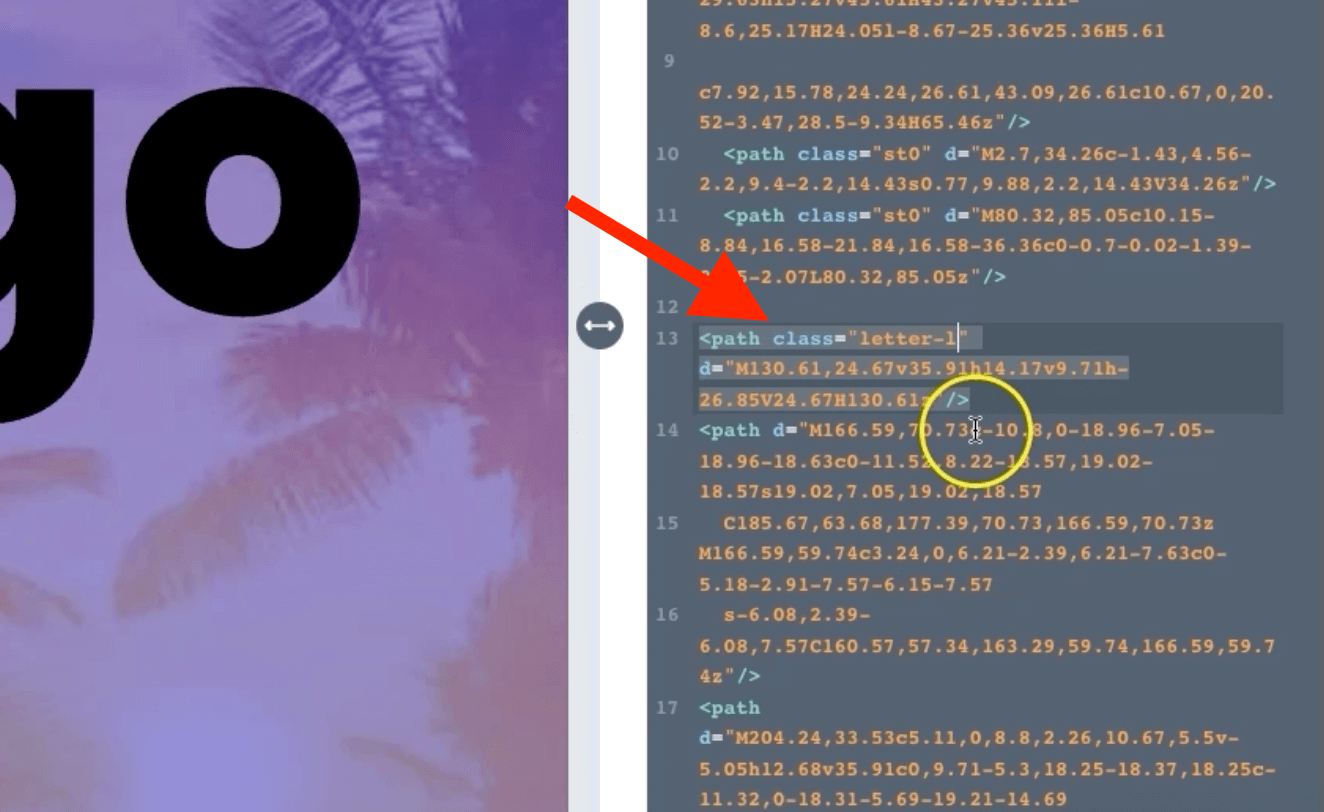

Add a class to a path

Once you’ve found a path that you want to manipulate, just add a regular class declaration which might look something like this:
class="letter-l"

The rest should come pretty naturally, all we need to do is add another code module and then start manipulating our class with some CSS. Don’t forget, that you can add classes to each of the paths in your SVG code, so the possibilities are endless.

Right now, we will look at manipulating the letter-l class we just added.

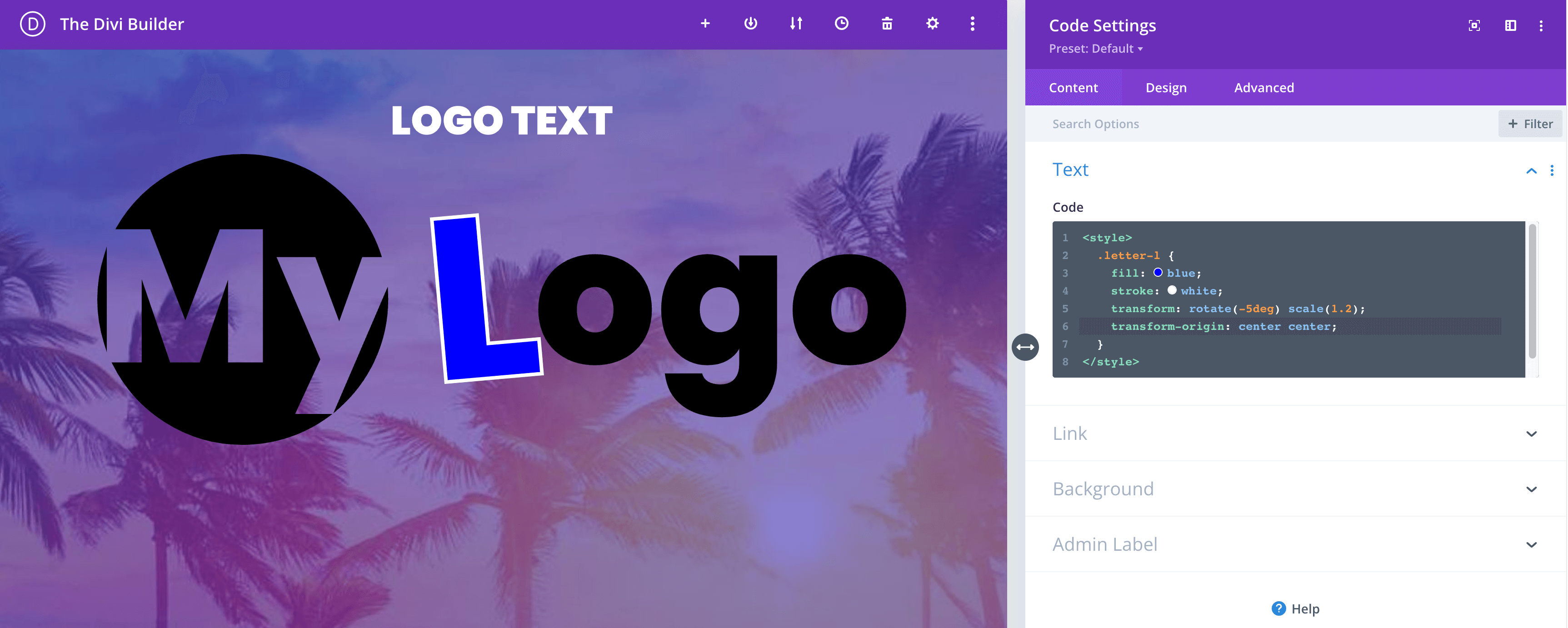

Add CSS code to change our SVG image

For this we will just write some standard CSS to manipulate the look of our SVG logo. You can use pretty much any CSS here, but for this we will look at the fill, stroke, and transform CSS properties.

Add another code module and paste the code below between two <style> tags and see your logo change.

.letter-l {
fill: blue;
stroke: white;
transform: rotate(-5deg) scale(1.2);
transform-origin: center center;
}

Dang Daniel! How awesome does that look? And how cool is it that we are able to modify an SVG logo we create in Adobe Illustrator with code in Divi? I’m really impressed and you should be proud folks!

SVG…ENHANCE!

Conclusion

SVGs basically give you Divi dev super powers, so we hope that this little tutorial on How to create and use SVG images in Divi was helpful. We won’t be stopping here though, we will be taking a look at how we animate SVG images in Divi, so definitely stay tuned for that in a future tutorial.

Definitely drop a comment below to let us know what you think, and for sure share any suggestions.
